Transmitting Module

TX 5.8Ghz video transmitter with quick bind technology and accessory port.

$49.99 USD
Find Reseller

The 25/200/400mw adjustable vTX module allows for the fastest channel switching in the industry.

With IR (infrared) technology you can quickly switch any setting from your Main Module or the VTX Remote.

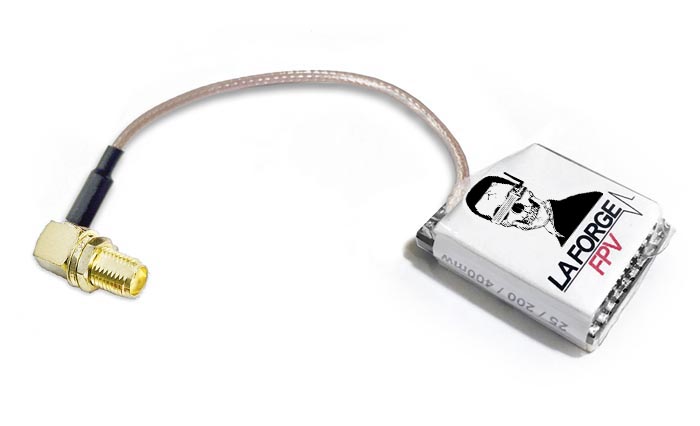

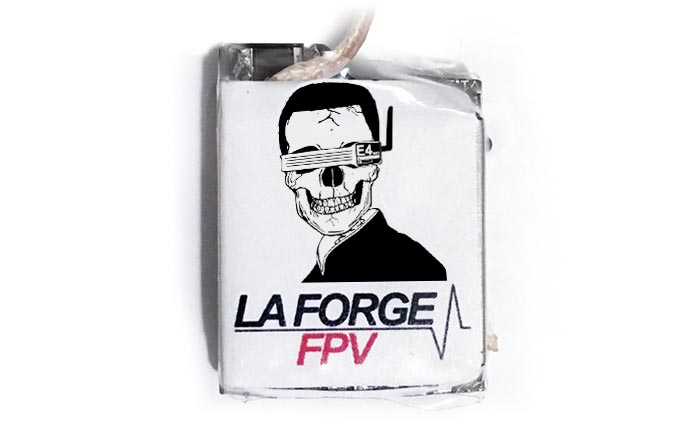

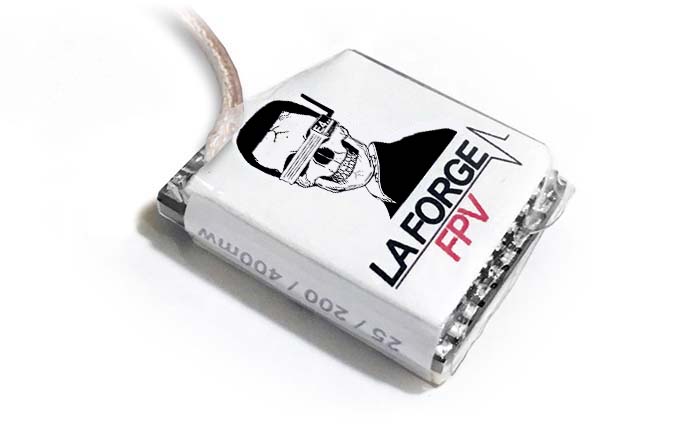

VTX Module

Custom engineered VTX module capable of transmitting clean RF signal at 25mw, 200mw or 400mw.

IR Detector

Quickly receive all settings from the IR Remote with our Quick-Bind infrared protocol.

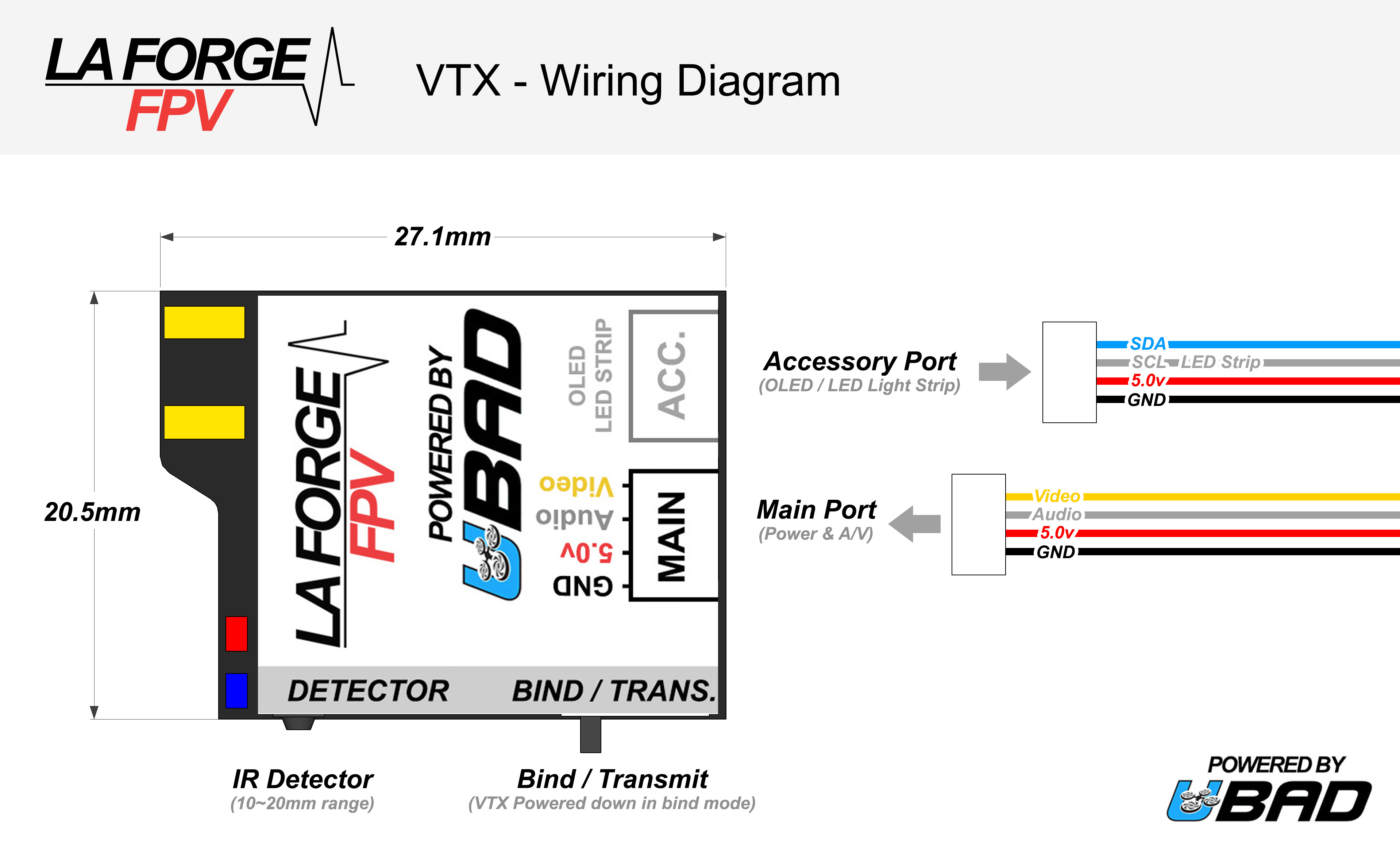

Accessory Port

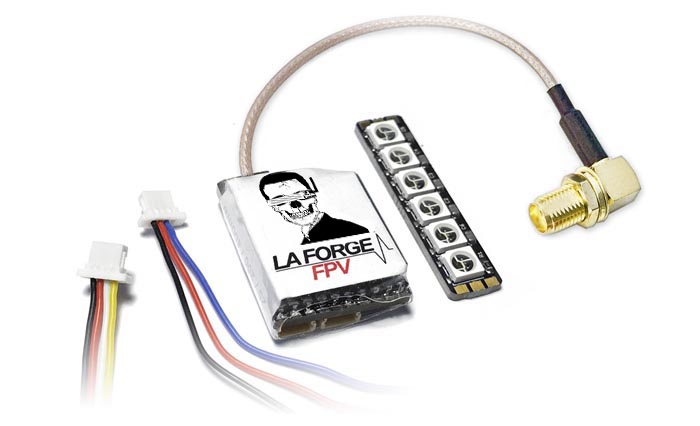

Plugs the LED Strip directly into the accessory port for added personalization.

Technical Specifications

Size
length 27.1mm, width 20.5mm, height 6mm
Weight
10 grams (6g without SMA)

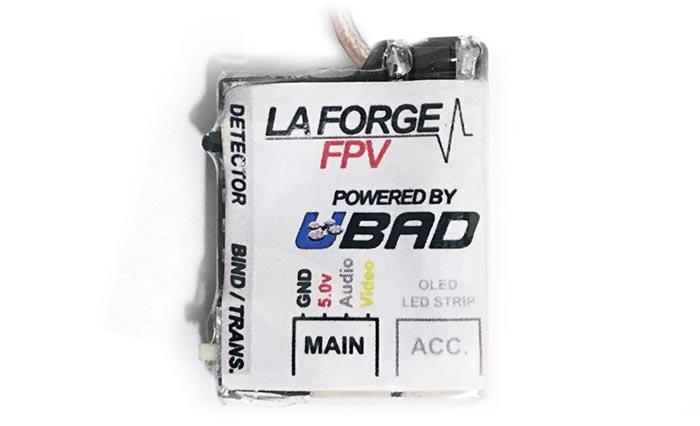

Status LEDs
Indicates power (red) and bind/transmit status (blue).
IR Detector
  • Requires line of sight to the VTX IR detector.
  • Short operating range of 0-40mm.
  • Payload only received in bind mode.
Firmware Features
  • Quick Boot Startup with last received channel and settings.
  • Accessory Port Attach an LED-Strip or OLED display for an even more personalized experience.
  • Audio Ground Reduce RF bandwith by setting the audio ground setting.
  • Bind Switch Switch between bind and transmit modes.
Transmitter
40 channel transmitter.

25/200/400mw switchable transmitter power level.
Designed around a custom vTX module only found on LaForge FPV Products.
Power
4.4v-5.0v input voltage only.

Current Draw
255mah @ 25mw 5905
385mah @ 200mw 5905
660mah @ 400mw 5905
Values may very depending on frequency and temperature.

Channel Mappings

Band 1 2 3 4 5 6 7 8
A 5865 5845 5825 5805 5785 5765 5745 5725
B 5733 5752 5771 5790 5809 5828 5847 5866
E 5705 5685 5665 5645 5885 5905 5925 5945
F / Airwave 5740 5760 5780 5800 5820 5840 5860 5880
C / Raceband 5658 5695 5732 5769 5806 5843 5880 5917

** TX antenna must be installed properly before it is switched on, power on without installed antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered.

*** The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. La Forge FPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By using our product, you agree to have read and to understand this notice.

Related

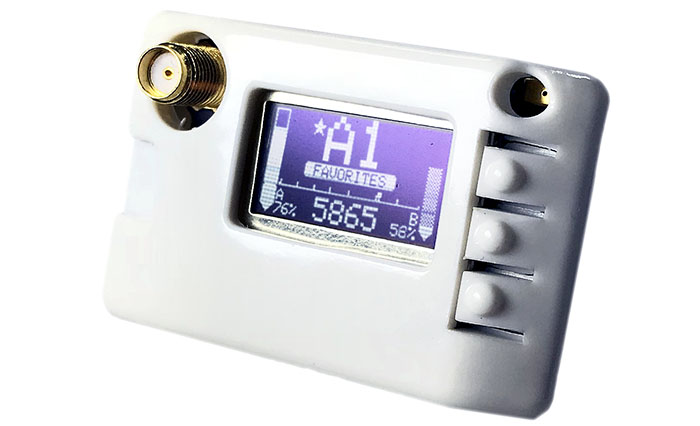

Main Module

V2 RX 5.8Ghz spectrum analyzer with OLED display and IR emitter.

View

Remote

VTX Remote can quickly send settings to any LaForge Transmitting Module.

View

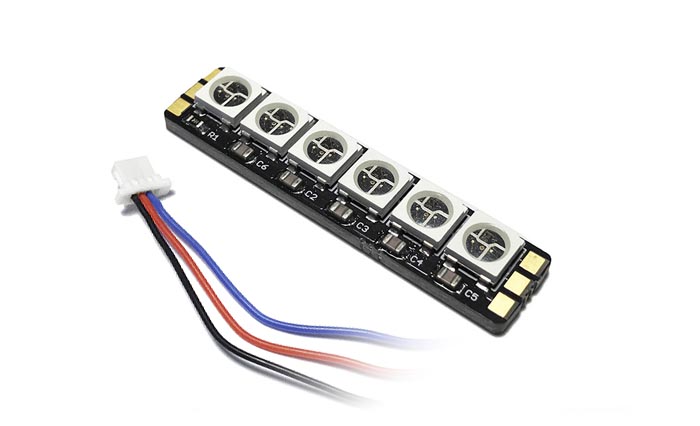

LED Strip
